SRG High Pressure Regulator/Direct import from Germany
No Rating Yet
0 Dijual
/ Per Produk

Penghantaran

Penghantaran Dari
Selangor
Anggaran Penghantaran
Apr 20, 2024 - Apr 27, 2024

Warna

OPTION

Sila pilih variasi produk terlebih dahulu

Kuantiti

50 Unit lagi
Jumlah
RM 105
Gambaran Kedai
Ypower kitchen solutions
On Vacation
Produk 7
Pengikut 0
Penilaian 0
Sertai Within a Year
Kadar Pembatalan 0%
Spesifikasi Produk
Category
: Home Appliances  >  Large Appliances  >  Parts & Accessories
Brand
: SRG
Model
: 555
SKU
:
Dimension (Length x Width x Height)
: 10.00 x 8.00 x 13.00
Weight(kg)
: 1.3
Manufacturing Country
: Not Specified
Warranty Type
: No Warranty
Warranty Value
: -
Warranty Description
: -
Hantar Dari
: Selangor
Deskripsi Produk

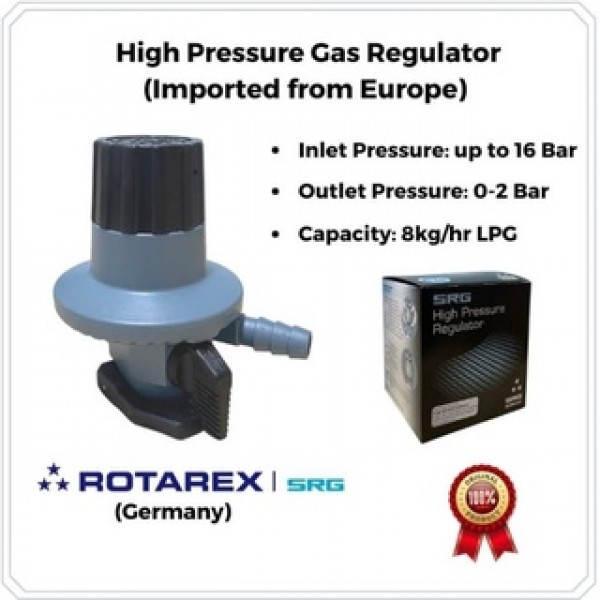

Regulator Brand: SRG Rotarex (Germany)

Model: 555-120

Inlet Pressure: up to 16 Bar

Outlet Pressure: 0-2 Bar

Capacity: 8 kg/hr LPG


The SRG Adjustable High Pressure Compact Regulator in connection with cylinder valve reduces the high gas pressure in the cylinder to the outlet pressure from 0-2 bar which is required for the operation of torches, burners and furnaces for commercial and industrial applications. (Single stage regulator with reinforced diaphragm).

The body and cover of this regulator form a sealed unit after assembly in order to prevent any external interference which may affect the regulating mechanism.


Regulator inlet with additional shut-off valve for extra safety.


No tools are required to connect the regulator to the valve.


This regulator is strictly to be used for high pressure gas appliances only.


Quality Standards:

The regulators are manufactured in full compliance with EN 16129 (EN 12864). SRG's quality-control system carries an ISO 9001 certificate and is continually assessed by the Notified Body.


Capacity:

Rated for inlet pressure of between 2.5 and 16 bar the regulator has a capacity of 8 kg gas/hr.


Operation:

Connection lever and on/off tap interlocked to ensure easy and safe handling:

- connection is simple, by just pressing down onto cylinder valve until there is an audible click.

cannot be unintentionally disconnected.

- to operate the regulator turn the control knob to the "On" position by turning it fully anticlockwise.

- always turn the control knob to the "Off" position after use.

- the delivery pressure can be adjusted between 0 and 2 bar by turning the control knob anti-clockwise for increasing the pressure, respectively clockwise for reducing the pressure.

- to disconnect the regulator from the cylinder valve, turn the control knob to the "Off" position, then lift the locking device and remove the regulator.


The SRG High Pressure Regulator holds a DOSH Product Design Certification and conforms to the specified requirements.


Option:

REGULATOR ONLY


OR


REGULATOR+ HOSE&CLIP

(UNIGAWA BS3212 FIRE RESISTANT GRADE HOSE)
